Wall cladding

We supply panels covered with marble, granite, steel, aluminium and other materials to make ventilated façades

Raised floors

We can make sturdy and light substructures, suitable for the construction of inspectable floors suitable for any premises

False ceilings

Our panels are used in ceilings for large spaces: airports, hotel lobbies and wherever lightness, fire resistance and extra-large formats are required

Cladding of large surfaces

When design and cosmetic quality are the project’s drivers, we certainly have a valid technical solution

CONSTRUCTION

In the construction sector, Starcell composite panels are mainly used to cover vertical and horizontal surfaces and are widely used thanks to the advantages offered by this type of semi-finished product. The finishing materials traditionally used in construction are heavy or particularly rare and expensive or brittle. Combining these materials with a sandwich panel makes it possible to minimize the finishing layer, drastically reducing the weight and, often, significantly improving technical performance.

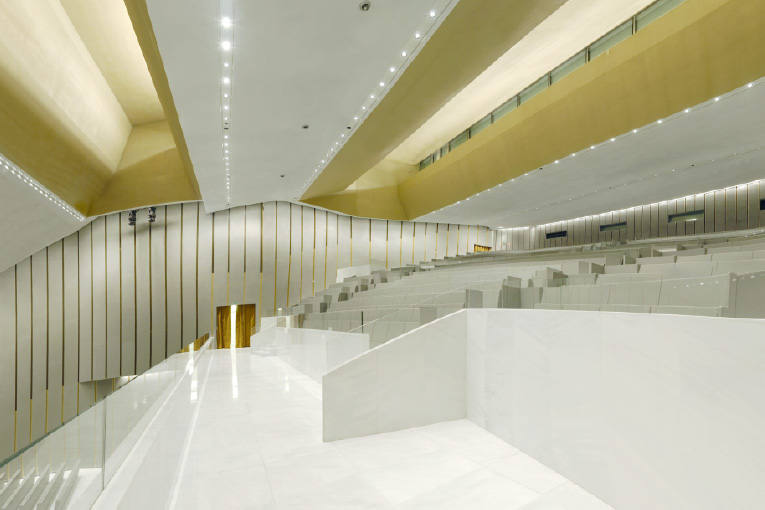

Contract

Contract

Civil engineering applications, in particular as area, have always been one of the most important markets for Starcell, both in terms of open-cell and solid core panels. Although the latter have lower mechanical performance than honeycomb, they are excellent for soundproofing and easy to install, besides being cost-effective and having a low cost of ownership.

Optimal solutions for this type of application are the panels with wooden skins of the RAWCELL® Wood family, which combine extreme lightness, ease of processing with normal manual or CNC equipment suitable for woodworking, low cost and robustness due to its internal honeycomb.

If the fire resistance standards are more restrictive or the structural requirements are binding, it is possible to use panels with metallic skins from the RAWCELL® Metal family.

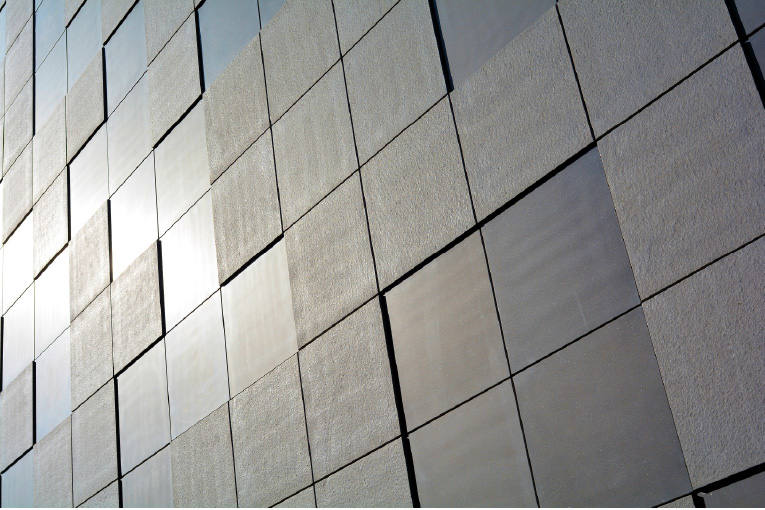

Ventilated façades

Ventilated façades

One of the most important applications in the construction sector is for the construction of ventilated façades. Starcell products can be used to build very large and lightweight cladding panels that are easy to handle and quick to install.

Starcell has developed specific solutions for this type of application that take into account a range of special features such as the creation of watertight perimeter edges or the application of reinforcements on the rear side of the panel (RAWCELL® Fiber PGAL+LZ), necessary to ensure structurally safe fastenings and increase the life of the component, also improving its appearance.

Starcell can supply panels without a finish, leaving the finishing operations to third-party finishers with the materials chosen by the customer, but is able to provide complete solutions, thanks to its wide choice of panels with a finish. We can manufacture them according to customer specifications, both as to the type of finishing material applied, and the type of support. In addition, we can supply panels cut and machined to customer specs, according to tables and lists.

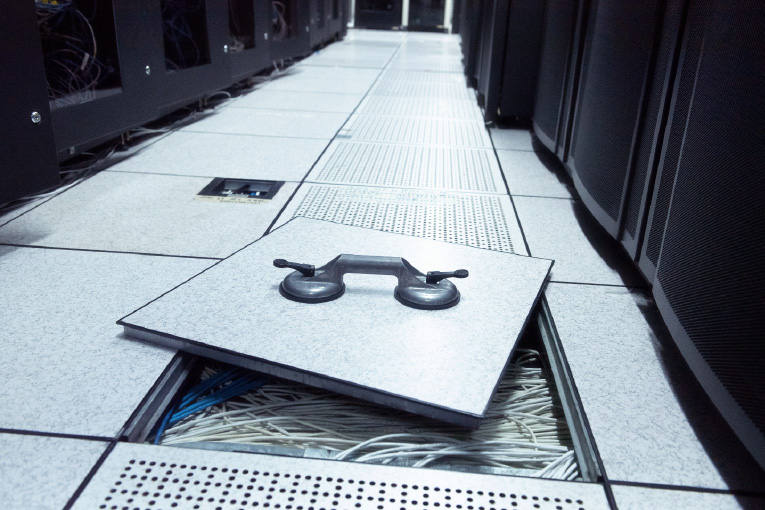

Raised floors

Raised floors

Honeycomb panels are basically unrivalled for raised floors, thanks to their light weight and excellent mechanical properties (high load-bearing capacity). Moreover, due to their intrinsic robustness, particularly large module sizes can be made if there are specific requests due by cosmetic requirements.

False ceilings

False ceilings

Composite panels with aluminium honeycomb cores become essential whenever large continuous surfaces are needed to hide channels and systems or where the design choices and the size of the module require uncommon solutions (large format, fine materials).

Starcell provides designers with its multifaceted experience in gluing as well as its sophisticated production systems to create couplings of innovative materials, to improve the environmental comfort and acoustic quality of spaces such as offices, industrial premises, concert halls, airport terminals, etc.

Recommended products without finish

arrow left
RAWCELL®
Metal
FP honeycomb panel

FP is a sandwich panel without a cosmetic finish, with an aluminium honeycomb core and raw or primed aluminium skins. Main fields of application: construction, furniture, lifts, shipbuilding, rail and road transport.

Find out more >RAWCELL<sup><small>®</small></sup> - Metal - FP
RAWCELL®
Metal
FPA honeycomb panel

FPA is a sandwich panel without a cosmetic finish, with an aluminium honeycomb core and skins made of galvanised or primed sheet steel. Main fields of application: construction, furniture, lifts, shipbuilding, railway, road.

Find out more >RAWCELL<sup><small>®</small></sup> - Metal - FPA
RAWCELL®
Fiber
PGA honeycomb panel

PGA is a sandwich panel without a cosmetic finish, with an aluminium honeycomb core and glass fibre fabric skins impregnated with epoxy resins directly by Starcell. Main fields of application: construction, furniture, naval, weight-reduction of marble and mosaics.

Find out more >RAWCELL<sup><small>®</small></sup> - Fiber - PGA
RAWCELL®
Fiber
PGAL300T honeycomb panel

PGAL300T is a sandwich panel without a cosmetic finish, with an aluminium honeycomb core and glass fibre fabric skins impregnated with epoxy resins directly by Starcell. Main fields of application: construction, furniture, weight-reduction of marble and mosaics.

Find out more >RAWCELL<sup><small>®</small></sup> - Fiber - PGAL300T
RAWCELL®
Fiber
PGAL300T+LZ honeycomb panel

PGAL300T+LZ is a sandwich panel without a cosmetic finish, with an aluminium honeycomb core and glass fibre fabric skins impregnated with epoxy resins. One side of the panel is reinforced with a sheet of steel to improve its fastening. Main fields of application: construction (ventilated façades), weight-reduction of marble and mosaics.

Find out more >RAWCELL<sup><small>®</small></sup> - Fiber - PGAL300T+LZ
arrow right

Recommended products with finish

arrow left
LITHOCELL®
Natural Stone
MA4 honeycomb panel

MA4 is a sandwich panel with a cosmetic finish consisting of a thin marble slab (4 mm). It has an aluminium honeycomb core and skins made of glass fibre fabric. It is obtained by gluing a marble finish slab to a panel without finish such as the RAWCELL® Fiber panel. Main fields of application: construction, furniture, shipbuilding, lifts.

Find out more >LITHOCELL<sup><small>®</small></sup> - Natural Stone - MA4
LITHOCELL®
Natural Stone
GR4 honeycomb panel

GR4 is a sandwich panel with a cosmetic finish consisting of a thin slab of granite (4 mm). It has an aluminium honeycomb core and skins made of glass fibre fabric. It is obtained by gluing a granite finish slab to a panel without finish such as the RAWCELL® Fiber panel. Main fields of application: construction, furniture, shipbuilding, lifts.

Find out more >LITHOCELL<sup><small>®</small></sup> - Natural Stone - GR4
LITHOCELL®
Natural Stone
PS3 honeycomb panel

PS3 is a sandwich panel with a cosmetic finish consisting of a split stone slab (< 3 mm). It has an aluminium honeycomb core and galvanized steel sheet skins. It is obtained by gluing a split stone finish slab to a panel without finish such as the RAWCELL® Metal panel. Main fields of application: construction, furniture, shipbuilding, lifts.

Find out more >LITHOCELL<sup><small>®</small></sup> - Natural Stone - PS3
LITHOCELL®
Composite Stone
PR6 honeycomb panel

PR6 is a sandwich panel with a cosmetic finish consisting of a reconstituted stone slab (6 mm). It has an aluminium honeycomb core and skins made of glass fibre fabric. It is obtained by gluing a reconstituted stone finish slab to a panel without finish such as the RAWCELL® Fiber panel. Main fields of application: construction, furniture, shipbuilding, lifts.

Find out more >LITHOCELL<sup><small>®</small></sup> - Composite Stone - PR6
LITHOCELL®
Composite Stone
TUF honeycomb panel

TUF is a sandwich panel with a cosmetic finish consisting of a layer of Tufite (2 mm). It has an aluminium honeycomb core and galvanized steel sheet skins. It is obtained by applying a mixture of tuff stone powder and resins to a panel without finish such as the RAWCELL® Metal panel. Main fields of application: construction (external cladding of buildings).

Find out more >LITHOCELL<sup><small>®</small></sup> - Composite Stone - TUF
LITHOCELL®
Ceramic
CE3 honeycomb panel

CE3 is a sandwich panel with a cosmetic finish consisting of a thin ceramic slab (3 mm). It has an aluminium honeycomb core and skins made of glass fibre fabric. It is obtained by gluing a ceramic finish slab to a panel without finish such as the RAWCELL® Fiber panel. Main fields of application: construction, furniture, shipbuilding, lifts.

Find out more >LITHOCELL<sup><small>®</small></sup> - Ceramic - CE3
METALCELL®
Anodyzed
AAN honeycomb panel

AAN is a sandwich panel with a cosmetic finish, made using a panel without finish such as the RAWCELL® Metal FP to which an anodised aluminium skin (finish) is applied in place of one of the two structural raw aluminium skins. Main fields of application: construction, furniture, lifts, shipbuilding, railway, road.

Find out more >METALCELL<sup><small>®</small></sup> - Anodyzed - AAN
METALCELL®
Anodyzed
AAC honeycomb panel

AAC is a sandwich panel with a cosmetic finish, made using a panel without finish such as the RAWCELL® Metal FP to which a coloured anodized aluminium skin (finish) is applied in place of one of the two structural raw aluminium skins. Main fields of application: construction, furniture, lifts, shipbuilding, railway, road.

Find out more >METALCELL<sup><small>®</small></sup> - Anodyzed - AAC
METALCELL®
Laquered
PP honeycomb panel

PP is a sandwich panel with a cosmetic finish, made using a panel without finish such as the RAWCELL® Metal FP to which a painted aluminium skin (finish) is applied in place of one of the two structural raw aluminium skins. Main fields of application: construction, furniture, lifts, shipbuilding, railway, road.

Find out more >METALCELL<sup><small>®</small></sup> - Laquered - PP
METALCELL®
Rusty
CT honeycomb panel

CT is a sandwich panel with a cosmetic finish, made using a panel without finish such as the RAWCELL® Metal FPA to which a CORTEN steel skin is applied in place of one of the two galvanized steel sheet structural skins. The panel is supplied without pre-oxidation. Main fields of application: construction, furniture.

Find out more >METALCELL<sup><small>®</small></sup> - Rusty - CT
MIXCELL®
Solid Surface
SS-6 honeycomb panel

SS-6 is a sandwich panel with a cosmetic finish consisting of a "Solid Surfaces" (6 mm). It has an aluminium honeycomb core and skins made of glass fibre fabric. It is obtained by gluing a "Solid Surface" finish to a panel without finish such as the RAWCELL® Fiber panel. Main fields of application: furniture, lifts, shipbuilding, rail transport, road transport.

Find out more >MIXCELL<sup><small>®</small></sup> - Solid Surface - SS-6
MIXCELL®
Laminate
HPL honeycomb panel

HPL is a sandwich panel with a cosmetic finish, consisting of an aluminium honeycomb core and decorative plastic laminate (HPL) skins. The panel can also be supplied with undecorated laminates. Main fields of application: furniture, lifts, shipbuilding, rail transport, road transport.

Find out more >MIXCELL<sup><small>®</small></sup> - Laminate - HPL
